Changzhou Victory Technology Co., Ltd victory@dlx-alloy.com 86-199-06119641
Rincian Produk
Tempat asal: Cina
Nama merek: Victory
Sertifikasi: ISO9001 ROHS
Nomor model: Inkonel 718
Dokumen: Brosur Produk PDF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 10 kg
Harga: negotiable
Kemasan rincian: Kotak karton kumparan, paket kumparan dengan polybag, kemudian dalam kotak kayu
Waktu pengiriman: 20 ~ 40 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 300 ton per bulan
Name: |

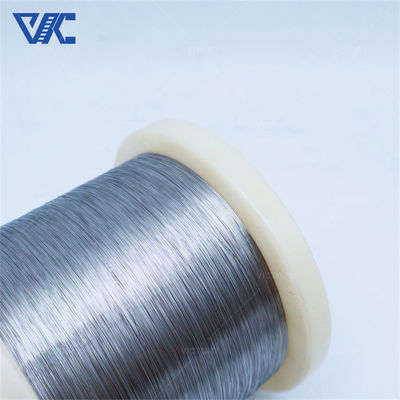

ASTM B637 haynes 718 nichrofer 5219 nickel alloy inconel 718 wire with tensile 1310-1515mpa |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Name: |
ASTM B637 haynes 718 nichrofer 5219 nickel alloy inconel 718 wire with tensile 1310-1515mpa |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Inconel 718 paduan
Inconel 718 adalah paduan nikel-kromium yang kuat dan tahan korosi yang dikenal karena sifat mekaniknya yang sangat baik pada suhu tinggi.dan aplikasi tegangan tinggi lainnya.
Apa perbedaan antara Inconel X750 dan 718 pegas?
nconel X750 dan Inconel 718 keduanya superalloy berbasis nikel, tetapi mereka memiliki komposisi dan sifat yang berbeda yang membuat mereka cocok untuk aplikasi yang berbeda.terutama dalam konteks bahan pegas:
1Komposisi:
Inconel 718: Berisi nikel (50-55%), kromium (17-21%), besi (hingga 19%), molibdenum (2.8-3.3%), dan niobium (4.75-5.5%).
Inconel X750: Berisi nikel (70-75%), kromium (14-17%), besi (5-9%), dan sejumlah besar titanium (1-2.5%) dan aluminium (0.2-0.6%).
2Sifat Mekanis:
Inconel 718: Dikenal karena kekuatan tinggi, ketahanan kelelahan yang sangat baik, dan fleksibilitas yang baik, terutama pada suhu tinggi.
Inconel X750: Menawarkan kekuatan tinggi dan ketahanan oksidasi pada suhu tinggi, tetapi memiliki fleksibilitas yang lebih rendah dibandingkan dengan Inconel 718.Hal ini sering digunakan dalam aplikasi yang membutuhkan stabilitas di bawah kondisi suhu tinggi.
3Ketahanan korosi:
Inconel 718: ketahanan korosi yang sangat baik, terutama di lingkungan asam dan garam, membuatnya cocok untuk aplikasi aerospace dan minyak dan gas.
Inconel X750: Juga menawarkan ketahanan korosi yang baik tetapi lebih fokus pada ketahanan oksidasi suhu tinggi daripada ketahanan terhadap lingkungan asam.
4Aplikasi:
Inconel 718: Umum digunakan dalam komponen aerospace, turbin gas, dan pegas yang beroperasi di lingkungan bertekanan tinggi dan korosif.
Inconel X750: Terutama digunakan dalam mesin turbin gas, reaktor nuklir, dan aplikasi suhu tinggi lainnya di mana stabilitas dan kekuatan sangat penting.
5Pengolahan panas:
Inconel 718: Dapat dikeraskan dengan usia untuk meningkatkan kekuatan dan kekerasan melalui proses pengolahan panas tertentu.
Inconel X750: Biasanya digunakan dalam kondisi larutan-annealed; penuaan kurang umum karena dirancang untuk stabilitas daripada pengerasan.
Sifat Kimia Inconel 718
Nikel (ditambah Kobalt)50.00-55.00
Kromium....................................................................................................................................................................................................................................17.00-21.00
Besi.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Niobium (ditambah Tantalum)4.75-5.50
Molibdenum........................................................................................................................... yang dapat digunakan sebagai bahan baku untuk pembuatan bahan baku2.80-3.30
Titanium............................................................................................................................................................................................................................................................0.65-1.15
Aluminium..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.20-0.80
Kobalt.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................1.00 maksimal.
Karbon0.08 maksimal.
Mangan.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.35 maksimal.
Silikon0.35 maksimal.
Fosfor............................................................................................................................................................................................................................................................0.015 maksimal.
Sulfur.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.015 maksimal.
Boron.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.006 maksimal.
Tembaga0.30 maksimal
| Kepadatan | 8.19g/cm3 | 0.296 lb/in3 |
| Titik leleh | 1260-1336 | 2437°F |
Seri Inconel
Sesuaikan ukuran seperti di bawah ini
|
Bentuk
|
Ukuran ((mm)
|
|
Kami akan
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5) * ((5-180)
|
|
Tabung
|
dibuat khusus
|
|
Piring
|
dibuat khusus
|
Hubungi kami
Email: victory@dlx-alloy.com
Layanan OEM:
Selamat datang ukuran khusus
Kami adalah pabrik pengalaman untuk layanan OEM & ODM
