Rincian Produk
Tempat asal: Cina
Nama merek: Victory
Sertifikasi: ISO9001 ROHS
Nomor model: Inkonel 718
Dokumen: Brosur Produk PDF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 10 kg
Harga: negotiable
Kemasan rincian: Kotak karton kumparan, paket kumparan dengan polybag, kemudian dalam kotak kayu
Waktu pengiriman: 20 ~ 40 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 300 ton per bulan
Name: |

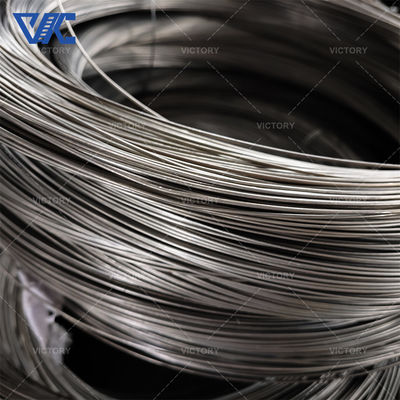

1mm 2mm 8mm 10mm high tensile super alloy ASTM B166 inconel 718 spring wire |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Name: |
1mm 2mm 8mm 10mm high tensile super alloy ASTM B166 inconel 718 spring wire |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Inconel 718 paduan
Inconel 718 adalah paduan nikel-kromium yang kuat dan tahan korosi yang dikenal karena sifat mekaniknya yang sangat baik pada suhu tinggi.dan aplikasi tegangan tinggi lainnya.
Karakteristik utama Inconel 718 Spring Wire:
Kekuatan Tinggi: Menjaga kekuatan pada suhu tinggi, membuatnya cocok untuk lingkungan yang menuntut.
Tahan korosi: Tahan yang sangat baik terhadap oksidasi dan korosi, terutama di lingkungan yang keras.
Kemampuan Membuat yang Baik: Dapat dengan mudah dilas dan dibentuk, memungkinkan desain pegas yang kompleks.
Pengolahan panas: Dapat diobati panas untuk meningkatkan sifat mekaniknya, seperti kekuatan hasil dan ketahanan kelelahan.
Aplikasi: Digunakan dalam komponen aerospace, mesin turbin gas, dan pegas yang membutuhkan kinerja tinggi di bawah tekanan.
Apa aplikasi umum Inconel 718 kawat pegas?
Komponen Aerospace: Digunakan dalam mesin pesawat, roda pendaratan, dan komponen penting lainnya yang membutuhkan kekuatan tinggi dan ketahanan terhadap suhu ekstrim.
Industri Minyak dan Gas: Digunakan dalam alat downhole, katup, dan peralatan kepala sumur yang menghadapi lingkungan yang keras.
Turbin Gas: Digunakan dalam bilah turbin, segel, dan komponen lain yang beroperasi pada suhu dan tekanan tinggi.
Aplikasi Nuklir: Digunakan dalam komponen yang harus menahan radiasi dan kondisi ekstrem.
Sifat Kimia Inconel 718
Nikel (ditambah Kobalt)50.00-55.00
Kromium....................................................................................................................................................................................................................................17.00-21.00
Besi.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Niobium (ditambah Tantalum)4.75-5.50
Molibdenum........................................................................................................................... yang dapat digunakan sebagai bahan baku untuk pembuatan bahan baku2.80-3.30
Titanium............................................................................................................................................................................................................................................................0.65-1.15
Aluminium..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.20-0.80
Kobalt.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................1.00 maksimal.
Karbon0.08 maksimal.
Mangan.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.35 maksimal.
Silikon0.35 maksimal.
Fosfor............................................................................................................................................................................................................................................................0.015 maksimal.
Sulfur.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.015 maksimal.
Boron.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.006 maksimal.
Tembaga0.30 maksimal
| Kepadatan | 8.19g/cm3 | 0.296 lb/in3 |
| Titik leleh | 1260-1336 | 2437°F |
Seri Inconel
Sesuaikan ukuran seperti di bawah ini
|
Bentuk
|
Ukuran ((mm)
|
|
Kami akan
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5) * ((5-180)
|
|
Tabung
|
dibuat khusus
|
|
Piring
|
dibuat khusus
|
Hubungi kami
Email: victory@dlx-alloy.com
Layanan OEM:
Selamat datang ukuran khusus
Kami adalah pabrik pengalaman untuk layanan OEM & ODM
