Rincian Produk
Tempat asal: Cina
Nama merek: Victory
Sertifikasi: ISO9001 ROHS
Nomor model: Inkonel 718
Dokumen: Brosur Produk PDF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 30 kg
Harga: negotiable
Kemasan rincian: Kotak karton kumparan, paket kumparan dengan polybag, kemudian dalam kotak kayu
Waktu pengiriman: 20 ~ 40 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 300 ton per bulan
Name: |

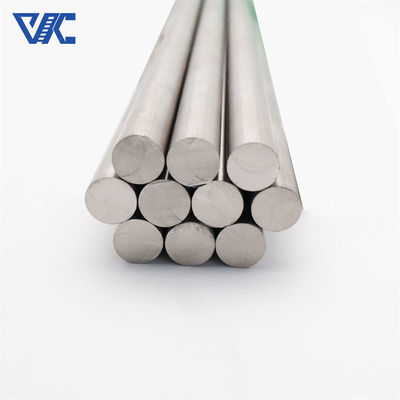

Nickel-Chromium-Columbium (Niobium)-Molybdenum nickel alloy inconel 718 wire rod bar for aerospace |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Name: |
Nickel-Chromium-Columbium (Niobium)-Molybdenum nickel alloy inconel 718 wire rod bar for aerospace |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Inconel 718 paduan
Inconel 718 adalah paduan nikel-kromium-kolumbium (niobium)-molibdenum yang tahan lama dengan kekuatan tinggi, ketahanan korosi, dan karakteristik pembuatan yang baik.hasil, dan sifat creep-rupture pada suhu tinggi dan dapat beroperasi pada suhu kriogenik hingga 1200 ° F (650 ° C).
Karakter batang Inconel 718:
Sifat Mekanis:
Kekuatan Tinggi: Menjaga kekuatan pada suhu tinggi, membuatnya cocok untuk aplikasi tekanan tinggi.
Ketahanan kelelahan: Sifat kelelahan yang sangat baik, yang sangat penting untuk komponen yang mengalami beban siklik.
Ketahanan korosi:
Ketahanan yang luar biasa terhadap oksidasi dan korosi, terutama dalam lingkungan yang keras seperti yang ditemukan dalam industri aerospace dan pengolahan kimia.
Kemampuan pembuatan:
Dapat dengan mudah dikerjakan, dilas, dan dibentuk, memungkinkan produksi bentuk dan komponen yang kompleks.
Pengolahan panas:
Dapat diobati panas untuk meningkatkan sifat mekaniknya, terutama kekuatan dan kekerasan hasil.
Aplikasi umum:
Aerospace: Digunakan dalam komponen mesin pesawat, bagian struktural, dan landing gear.
Minyak dan Gas: Digunakan dalam alat downhole, katup, dan pipa yang membutuhkan kekuatan tinggi dan ketahanan korosi.
Nuklir: Digunakan dalam komponen yang harus menahan radiasi dan kondisi ekstrem.
Peralatan Industri: Digunakan dalam berbagai mesin dan komponen yang beroperasi di bawah tekanan tinggi dan lingkungan korosif.
Sifat Kimia Inconel 718
Nikel (ditambah Kobalt)50.00-55.00
Kromium....................................................................................................................................................................................................................................17.00-21.00
Besi.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Niobium (ditambah Tantalum)4.75-5.50
Molibdenum........................................................................................................................... yang dapat digunakan sebagai bahan baku untuk pembuatan bahan baku2.80-3.30
Titanium............................................................................................................................................................................................................................................................0.65-1.15
Aluminium..................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.20-0.80
Kobalt.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................1.00 maksimal.
Karbon0.08 maksimal.
Mangan.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.35 maksimal.
Silikon0.35 maksimal.
Fosfor............................................................................................................................................................................................................................................................0.015 maksimal.
Sulfur.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.015 maksimal.
Boron.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.006 maksimal.
Tembaga0.30 maksimal
| Kepadatan | 8.19g/cm3 | 0.296 lb/in3 |
| Titik leleh | 1260-1336 | 2437°F |
Seri Inconel
Sesuaikan ukuran seperti di bawah ini
|
Bentuk
|
Ukuran ((mm)
|
|
Kami akan
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5) * ((5-180)
|
|
Tabung
|
dibuat khusus
|
|
Piring
|
dibuat khusus
|
Hubungi kami
Email: victory@dlx-alloy.com
Layanan OEM:
Selamat datang ukuran khusus
Kami adalah pabrik pengalaman untuk layanan OEM & ODM
