Rincian Produk
Tempat asal: Cina
Nama merek: Victory
Sertifikasi: ISO9001 ROHS
Nomor model: Inkonel 718
Dokumen: Brosur Produk PDF
Ketentuan Pembayaran & Pengiriman
Kuantitas min Order: 30 kg
Harga: negotiable
Kemasan rincian: Kotak karton kumparan, paket kumparan dengan polybag, kemudian dalam kotak kayu
Waktu pengiriman: 20 ~ 40 hari
Syarat-syarat pembayaran: L/C, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 300 ton per bulan
Name: |

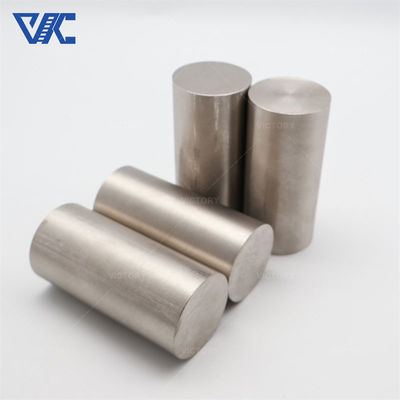

AMS 5662 nickel-chromium alloy 718 rod Inconel 718 bar commonly used in bolts, nuts and fasteners |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Name: |
AMS 5662 nickel-chromium alloy 718 rod Inconel 718 bar commonly used in bolts, nuts and fasteners |
Material: |
Nickel Chromium Iron |
Ni (Min): |
50~55% |
Density: |
8.24 g/cm3 |
Melting point: |
1260-1320°C |
Elongation (≥ %): |
25 % |
Thermal conductivity: |
15.9 W/m·K |
Finishing: |
Bright,Oxided, acid white |
Application: |
Construction, Industry Oil, piping systems |
Yield strength: |
550MPa |
Tensile strength: |
910 MPa |
Hardness: |
≤ 363 HB |
Standard: |
ASTM, ASME |
size: |
6~200mm |
shape: |
Round, Square, flat |
Inconel 718 paduan
Inconel 718 adalah pilihan utama untuk baut dan kacang dalam aplikasi kritis karena sifat mekaniknya yang luar biasa, ketahanan korosi, dan fleksibilitas.
Hal ini membuatnya menjadi pilihan yang dapat diandalkan bagi insinyur dan desainer yang membutuhkan pengikat berkinerja tinggi.
Memilih Inconel 718 untuk baut dan kacang
1. Kekuatan tinggi dan daya tahan
Tahan suhu: Mempertahankan kekuatan pada suhu tinggi, membuatnya ideal untuk aplikasi aerospace dan industri.
Ketahanan kelelahan: Ketahanan kelelahan yang sangat baik memastikan keandalan di bawah beban siklik.
2. Tahan korosi
Resistensi oksidasi: Berkinerja baik dalam lingkungan suhu tinggi tanpa teroksidasi.
Ketahanan terhadap kerontokan dan korosi stres: Cocok untuk lingkungan kimia yang keras, seperti yang ditemukan dalam aplikasi minyak dan gas atau laut.
3. Kelayakan pengelasan
Mudah Diperbuat: Dapat dilas menggunakan berbagai metode tanpa kehilangan sifat mekaniknya, memungkinkan desain yang kompleks.
4. Versatilitas
Berbagai Aplikasi: Digunakan di industri aerospace, nuklir, dan minyak dan gas, menunjukkan kemampuan beradaptasi dengan lingkungan yang berbeda.
5. Kinerja jangka panjang
Keandalan: Rekam jejak yang terbukti dalam aplikasi kritis di mana kegagalan bukan pilihan, memastikan keamanan dan kinerja.
6Efektivitas biaya
Pengopènan Rendah: Umur panjang dan ketahanan terhadap keausan dan korosi dapat menyebabkan biaya pemeliharaan lebih rendah dari waktu ke waktu.
Sifat Kimia Inconel 718
Nikel (ditambah Kobalt)50.00-55.00
Kromium..........................................................................................................................................................................................................................................17.00-21.00
Besi.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
Niobium (ditambah Tantalum)4.75-5.50
Molibdenum........................................................................................................................... yang dapat digunakan sebagai bahan baku untuk pembuatan bahan baku2.80-3.30
Titanium.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.65-1.15
Aluminium.................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.20-0.80
Kobalt.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................1.00 maksimal.
Karbon0.08 maksimal.
Mangan.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.35 maksimal.
Silikon0.35 maksimal.
Fosfor............................................................................................................................................................................................................................................................0.015 maksimal.
Sulfur.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.015 maksimal.
Boron.......................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................0.006 maksimal.
Tembaga0.30 maksimal
| Kepadatan | 8.19g/cm3 | 0.296 lb/in3 |
| Titik leleh | 1260-1336 | 2437°F |
Seri Inconel
Sesuaikan ukuran seperti di bawah ini
|
Bentuk
|
Ukuran ((mm)
|
|
Kami akan
|
0.5-7.5
|
|
Rod/Bar
|
8.0-200
|
|
Strip
|
(0.5-2.5) * ((5-180)
|
|
Tabung
|
dibuat khusus
|
|
Piring
|
dibuat khusus
|
Hubungi kami
Email: victory@dlx-alloy.com
Layanan OEM:
Selamat datang ukuran khusus
Kami adalah pabrik pengalaman untuk layanan OEM & ODM
